A data center is a physical facility that houses critical IT infrastructure required to process large amounts of data that support the operation and management (O&M) of an organization’s computing requirements.

The major components of a data center includes, physical infrastructure, networking equipment, storage system, power system, cooling and environmental control system, security system, management and monitoring system, connectivity, redundancy and disaster recovery system, and compliance and standards.

How Does a Data Center Work?

Working inside a data center depends upon various components such as servers, storage, networking, data center infrastructure management (DCIM), cooling, security, etc., which together make up different systems that work together to ensure smooth operations.

Apart from hardwares, data center infrastructure also relies on various software and virtualization technologies that are designed in a way to cover the gap between traditional infrastructure and modern infrastructure requirements.

This paved the way for virtualization technologies that allows operators to run multiple virtual machines (VMs) on a single physical server to attain better resource optimization and speedy deployment.

Let us now explore the other key components of data center infrastructure briefly.

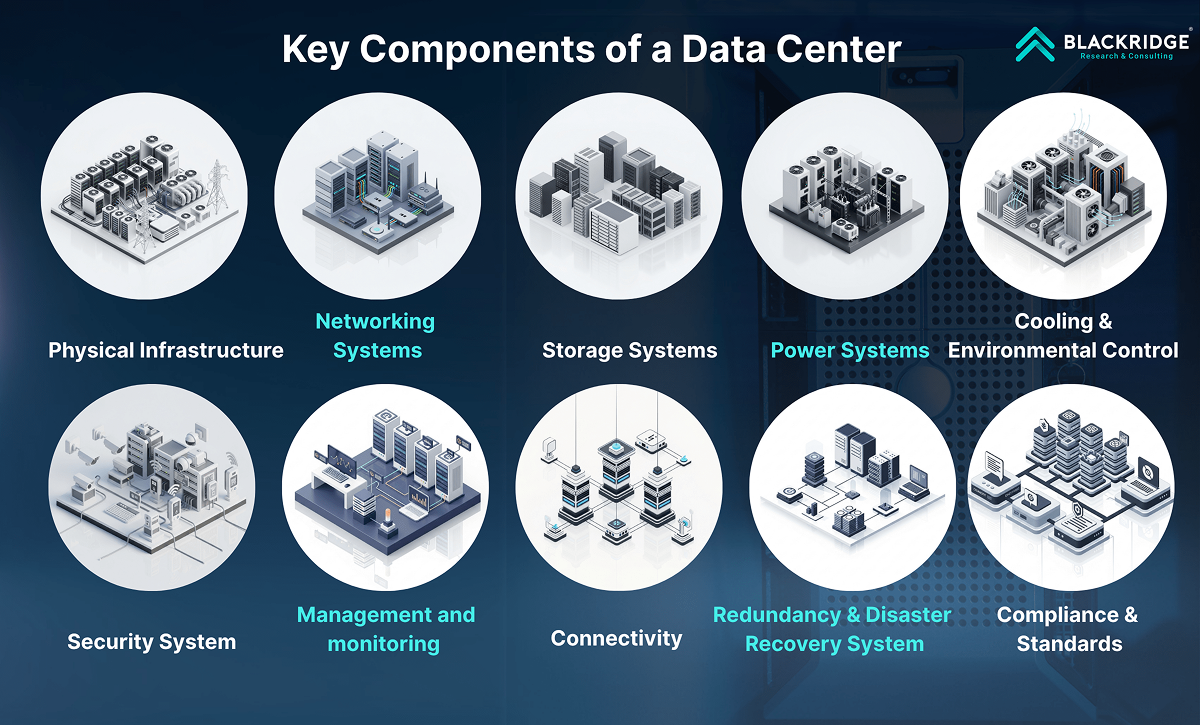

Core Components of a Data Center Facility

Physical Infrastructure

The physical infrastructure of a data center includes servers which can be of various types, such as rack servers, blade servers, and tower servers.

Servers are used to process data across various networks. They are equipped with powerful processors, storage, memory, and are able to handle huge computational requirements.

Server management is an essential component of a data center infrastructure to reduce cost, increase flexibility, and minimise overall downtime.

Let us learn about various types of servers available and their specific functions.

Networking Equipments

Networking equipment of a data center includes routers, switches, firewalls, load balancers, racks & enclosures, cabling, and fiber optics.

Networking equipment of a data center enables connectivity between various components such as server storage and other external networks.

Without a seamless network system, it will be impossible to deliver increased bandwidth for high-performance applications that allows organizations to manage network resources and handle traffic routing.

Storage Systems

Storage systems can be of different types including storage area network (SAN), network attached storage (NAS), direct attached storage (DAS).

Having an apt storage system is very important to improve data management and productivity.

It is also important for robot security and backup features that ensures authenticity and develops trust between operators and end-users

With the evolution of other data center components, storage systems also evolved to cater modern storage infrastructure requirements. Users also rely on cloud services for their storage needs.

Power systems

Power systems are an essential part of the data center infrastructure, without adequate and well-managed power supply none of the components can function.

There are different types of load in a data centre including IT equipment, air conditioners, lightning, etc.

The flow of energy from the generated source to the load is facilitated by various types of equipment. In this, there are two commonly used locations of equipment (i.e, the transformer upstream of the UPS) known as upstream (towards the utility unit) and downstream (towards the data centre loads).

Various equipment such as MV/LV transformer, low voltage switchgear, automatic transfer switch, UPS, busway, panelboard, etc, help distribute power to the downstream load and protect the PDU system.

The power system of a data center infrastructure includes power distribution units (PDUs), uninterrupted power supply ( UPS), backup generators, electrical panels, and power monitoring system for real-time insights on power usage and system health.

The power infrastructure is designed to provide sufficient redundancy and remove all single points of failure. In instances of primary power grid faults, backup power grid can be provided to keep the system operating.

Cooling and Environmental Control

There are various types of cooling systems such as computer air conditioning, liquid cooling, Hot and cold aisle containment systems, and HVAC systems.

Cooling and environmental control systems are important for sustainable use of power that is required to run a data center 24/7.

Data centers are high density enclosed spaces that generate massive amounts of heat which cannot be contained by the traditional cooling systems, due to which there can be significant loss and increased downtime.

Special emphasis is given to moisture and air leakage, contaminants, room temperature, humidity, air flow, ceiling height and aisle space to ensure proper ventilation and release of excess heat.

Security Systems

Since many organisations trust data centers with their critical data it is essential to have a sturdy and effective security system that covers the security aspect of a data center holistically.

With the evolution of modern technology, security threats have also been evolving, resulting in a paradigm shift towards adopting a more stringent and secure data center security system.

Physical security involves surveillance cameras, biometric controlled access, and security personnel to prevent unauthorized access to the data center.

On the other hand, digital security includes firewalls, intrusion detection systems, access control systems, encryption, and other software technology to ensure comprehensive security and data integrity.

Physical security and fire protection must be placed at every point of entry to the data center, moreover, sensors and smoke detectors are also important to alarm the personnel in case of any exigency.

Management and monitoring

Data center infrastructure management systems are used for efficient and centralized infrastructure management of a data center. It helps in data analysis and optimization of resources.

It includes a DCIM software which includes asset management, capacity planning and energy management.

DCIM is important to enhance efficiency, reliability, security, scalability, and decision-making capabilities.

Using DCIM tools for monitoring and analysis can lead to optimized resource usage and better control over infrastructure health.

Regular updates are required to keep the system operating seamlessly

Connectivity

Connectivity can be of various types depending on the requirement and distance between the end user and the data center.

For high-speed transmission, fibre optics can be used, it has high bandwidth and offers low latency.

The other types of network are peering networks and cross connects.

Its key components include switches and routers, fibre optic cables, internet service providers (ISPs), cross connects and other essential parts.

Apart from this, there are also various types of connectivity such as inter-data center connectivity (between multiple data centers), inter-data center connectivity ( between servers and storage systems), and cloud connectivity ( between data centers to cloud services for hybrid deployment)

Redundancy and Disaster Recovery System

It is one of the most important systems for any data center. To avoid risks of data loss due to power outages and unanticipated natural hazards, a redundant system is required.

Data centers usually offer 4 levels of redundancy, as classified by the Uptime Institute i.e, Tier1, Tier2, Tier3 and Tier4.

It includes redundant gas and power engines, waste heat recovery modules and other comprehensive cooling solutions.

A data center's redundancy and disaster recovery system includes various parts such as a failover system, backup solutions, and disaster recovery system for restoration of data.

Compliance and Standards

Complaints and standards may not be a part of the active physical infrastructure of a data center, but it is an essential component on the legal side of the infrastructure.

Standards such as general data protection regulations (GDPR), health insurance portability and accountability act (HIPAA) and other local and regional standards are not only important for legal purposes, but are also essential to maintain a sustainable and protected data center environment that is demanded by the industry.

Compliance and standards enhance an organization’s credibility.

5 Things to Keep in Mind for Maximum Efficiency Optimization of a Data Center

In a race to provide the best data center facility to their customers, operators often neglect minor lacunae that later prove to be a major player in the operations and management (O&M) of a data center. As a result, operators reap less returns and end up with more investment.

To maintain an efficient and resource optimized data center functioning, few things should be kept in mind before dealing with any data center facility.

Let us discuss a few important tips to keep in mind when dealing with the working of a data center facility.

Tips for Optimum Cooling efficiency

A critical component of the air conditioning system is the raised floor that provides a way for the chilled air to move towards the perforated cabinet that depends upon the local static pressure above the perforated tile.

In addition placement of the CRAC unit is also important, CRAC units should be positioned perpendicular to the rows. Lastly, use of a containment system to isolate hot and cold aisle from each other should be kept in mind.

Tips for Optimum Power Efficiency

Monitoring the usage of power consumption is very important; it should be done using the power usage effectiveness (PUE) metrics. Learning about key data center energy efficiency metrics is very pivotal. Moreover, choosing energy efficient equipment and storage systems is also important.

An efficient power management system, regular maintenance, using energy efficient lighting, and using renewable power sources should also be kept in mind.

Tips for Optimum Redundancy

Data center operators function according to the tier standard developed by the Uptime Institute. According to the standard, there are 4 tiers (Tier1, Tier2, Tier3, and Tier4) of redundancy provided by the data center; specific norms and regulations should be followed to maintain the level of tier adopted.

It is important to read the guidelines provided by the Uptime Institute to maintain the optimum level of redundancy for smooth operations.

Tips for Optimum Data Center Management

Since the working of a data center is like a complex intertwined web of operations, it is important to simplify the working inside a data center. For this and efficient data center infrastructure management system and planning should be adopted.

Choosing the right data center infrastructure management (DCIM) system will help operators manage workload traffic and intelligent resource allocation.

Tips for Optimum Security

Since cyber attackers are finding new ways to attack, steal, and access data, it is important to opt for an advanced security system including biometric, fingerprint sensor, iris scanner, face recognition, artificial intelligence, firewalls, and other security parameters to ensure two-factor authentication of access and control.

Conclusion

With the ever-increasing demand for data storage and processing, the importance of data centers will continue to grow, making it more crucial.

In conclusion, a data center is a complex and interconnected facility that relies on diverse components to operate efficiently.

From the servers and storage systems that process and store data, to the network infrastructure and power systems that support them, every element plays a critical role in ensuring the smooth operation of the data center.

By understanding the various components of a data center, organizations can design and build facilities that meet their specific needs, improve efficiency, and reduce costs.

Find Upcoming Data Center Facility Projects Around the World with Ease.

Are you looking for a platform that gives you reliable, high-quality, and timely project insights for global Data Center Facility Projects?

Discover the Global Project Tracking (GPT) platform by Blackridge Research, designed to provide you with the most recent Global Data Center Facility Projects better and faster across various stages of development:

• Upcoming projects

• Tender Notices

• Contract award announcements

• Projects in progress or under construction

• Successfully completed projects.

Book a Free demo to learn more about the Global Data Center Facility Projects database and how we can help you achieve your goals.

Frequently Asked Questions (FAQs)

What is the role of a server in a data center?

A server manages, stores, and processes data, applications, and services.

What security measures are used in a data center?

Data centers use biometrics controlled access, physical security personnel, surveillance systems, firewalls, backup and recovery systems, sensors, artificial intelligence, data center networking, data center management, storage infrastructure, etc as a security measure.

How do data centers manage power and cooling?

Data centers manage power and cooling through special designed systems such as power distribution units (PDUs) and uninterrupted power supply (UPSs), air conditioning system, HVAC system and other equipment.
